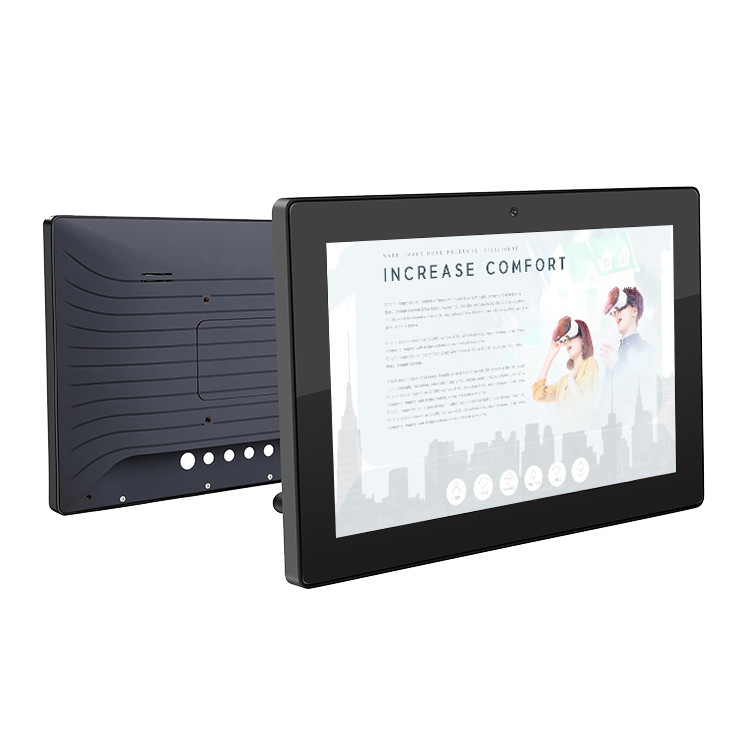

10.1'' Commercial IOT Control Panel Wall Mounted With WiFi Ethernet RJ45
  • 10.1'' Commercial IOT Control Panel Wall Mounted With WiFi Ethernet RJ45
  • 10.1'' Commercial IOT Control Panel Wall Mounted With WiFi Ethernet RJ45
  • 10.1'' Commercial IOT Control Panel Wall Mounted With WiFi Ethernet RJ45
  • 10.1'' Commercial IOT Control Panel Wall Mounted With WiFi Ethernet RJ45
  • 10.1'' Commercial IOT Control Panel Wall Mounted With WiFi Ethernet RJ45

10.1'' Commercial IOT Control Panel Wall Mounted With WiFi Ethernet RJ45

Place of Origin SHENZHEN
Brand Name OEM
Certification CCC/CE/CUSTOM
Model Number ICP -10
Product Details
Screen Size:
10.1" IPS Touch Panel 1280*800
CPU:
RK3566 Quad-core Cortex-A55 Or PX30
Touch Panel:
10 Points Capactive Touch Panel
RAM+ROM:
2GB+16GB
Interface:
DC Power Jack + RJ45 (POE Optional) +USB Type A*2+HDMI + TF Card Slot+3.5mm Headphone Jack
Power Suply:
DC 12V
Install:
In Wall Or MALL
Customize Function:
Booted With Super SU & BOOTING LOGO
Highlight:

IOT Control Panel Wall Mounted

,

10.1'' IOT Control Panel

,

RJ45 IOT Control Panel

Payment & Shipping Terms
Minimum Order Quantity
200
Price
Contact Us Now,For a Detailed Quotation
Packaging Details
Custom Your Idea or neutral Package
Delivery Time
25-65 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 Sets/month
Product Description

10.1'' Wall Mounted Commercial IOT Control Panel Touch Screen WiFi Ethernet RJ45 POE Android

10.1 inch Smart Retail Touch Display RK3566 Wall Mounted Android POE Tablet

Description



1. POE is compliance with IEEE802.3at/af



2. IPS 1280*800 10 points capactive



3. RK3566 quad core processor



4. 2GB RAM/16GB ROM or 1GB RAM + 8GB ROM



5. Android 11 OS



6. Built in WIFI, Blue-tooth , RJ45 (poe) , microphone , camera and speakers



7. 300nits (500nits optional)

Specification

CPU

RK3566 Quad-core Cortex-A55 (PX30/RK3128/RK3568/RK3288/RK3399 optional)

RAM

2GB (1GB/4GB optional)

ROM

16GB (32GB optional)

Operating system

Android 11 (Android 8.1/9/10 optional)

Screen

10.1 inch IPS screen

Touch Panel

10-Point capacitive touch

Resolution

1280*800 (FHD 1920*1200 pixel optional)

Brightness

300nits (500nits optional)

Contrast

700:1

Aspect ratio

16:9





Network

WiFi 802.11 b/g/n (5G WiFi optional)

BT

Ethernet 10/100M

3G USB dongle support









Interfaces

1*DC power jack

1*RJ45 Ethernet port (POE function optional)

1*USB 2.0

1*USB 3.0

1*HDM1 output

1*TF card slot

1*3.5mm headphone jack

Video

Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc.(max support 1080P)

Audio

Support MP3, WMA, AAC and so on


JPEG,JPG

Vesa Mount

75*75mm

Speaker

2*2W speakers

Camera

Front camera 2MP

Language

Multi-language

Adapter

*1, 12V/2A



Picture Details

10.1'' Commercial IOT Control Panel Wall Mounted With WiFi Ethernet RJ45 010.1'' Commercial IOT Control Panel Wall Mounted With WiFi Ethernet RJ45 110.1'' Commercial IOT Control Panel Wall Mounted With WiFi Ethernet RJ45 210.1'' Commercial IOT Control Panel Wall Mounted With WiFi Ethernet RJ45 3

Application

 Supermarket Digital Display

 Smart house,

 Office Meeting,

 Self Services,

 Shopping Mall,

 Education School

10 INCH MALL DISPLAY TABLET

FAQ

1.Q:Are you a manufacturer?

A:Yes,we are a professional manufacturer for Monitor, Android Tablet and display equipments



2.Q:What is the minimum order?

A:We have no limit for MOQ, small orders are also welcome,OEM order too



3.Q: Can you do OEM/ODM?

A:Sure, we can customize the size,color,silk print Logo,boot logo,connectors, packing box.etc, if you want to customize your own display, choose us, we won't let you down



4.Q:What warranty do you offer?

A:Most of our products warranty is 1 year and offer 1% spare parts, we also provide lifelong technical support



5.Q:What payment methods your company accept?

A:We accept most of payment methods, recommend Alibaba, T/T, Western Union and PayPal.
