| Place of Origin | SHENZHEN |
| Brand Name | OEM |
| Certification | CCC/CE/CUSTOM |
| Model Number | ICP -57810 |
Features :

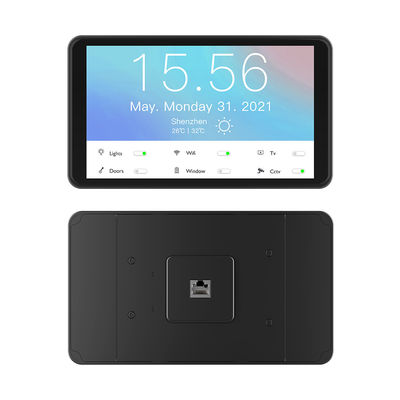

5.5 7 8 10.1 inch wall mount android tablet RJ45 poe tablet touch screen for smart home display
Features:
1) Wall mount design, magnetic attach
2) RJ45 POE support ethernet and stable power supply
3) RS232, RS485 protocal
4) 5.5" 7", 8", 10.1" optional
|
Hardware
|
||
|
CPU
|
MT8766A
|
|
|
RAM+ROM
|
LPDDR3 2GB+ EMMC 32GB
|
|
|
LCD
|
5.5inch IPS FHD 1920*1080
|
|
|
TP
|
G+F+F full lamination, Gorilla glass, 2.5D, 5 points touch,
|
|
|
CAM
|
NO
|
|
|
BATTERY
|
NO
|
|
|
Indicator
|
NO
|
|
|
MIC
|
YES
|
|
|
SPK
|
BOX Speaker*1pc
|
70DB, 1 meter
|
|
Light sensor
|
YES
|
0 - 30cm
|
|
Gravity sensor
|
YES
|
|
|
Housing
|
fireproof & waterproof plastic case with metal middle frame
|
|
|
Communication
|
||
|
WIFI
|
802.11 ac/a/b/g/n 2.4G/5G
|
|
|
BT
|
BT5.0
|
|
|
GPS
|
YES
|
|
|
Connection
|
||
|
TYPE C
|
YES
|
Power supply/data/OTG
|
|
DC
|
NO
|
|
|
SIM card
|
NO
|
|
|
TF card
|
NO
|
|
|
Serial port
|
YES
|
TX,RX,GND
|
|
RJ45
|
YES, optional
|
48V POE for power charging and ethernet
|
|
RJ12
|
YES, optional
|
RS485 serial communication
|
|
Power button
|
Power on/off, Volume +/-
|
|
|
System
|
||
|
Android
|
Android 9 (ready), other android versions optional
|
|
User scenario
Smart hotel
Smart home
Smart apartment
Smart office
...
Any place need touch display as a smart controller
Q1: Can you support to design the tablet pc smartphone laptop outlook?
A1:Yes, we can custom ID and MD design with your reference and using scenario description.
Q2: Do you support the product software(SW) development?
A2: Normally we do system and driver level development, Application-level development will be done by Client or 3rd party
software(SW) developer assigned by clients.
Q3: Which OS can you support development?
A3:Yes, we can support tablet PC & smartphone custom OS based on Android OS ,Windows OS ,Linux OS, Ubuntu OS.
Q4: Can you support to remove the battery from tablet PC?
A4:Yes, sure, we can support tablet PC or smartphone removed battery, removed the camera, shipment without the device case, as well as we can support add the POE,USB Type C, DC IN, HDMI interface on the smart device.
Q5: Can you support SKD service?
Q5: Yes, we can support SKD (software kit development) service for customers.
Q6: Do you have any experience with smart home projects?
A6: Yes,we have rich experience with quite a lot smart home iOT cases. Tuya, Google assistant work with Alexa, Zigbee, Zwave, LoRa, etc.
