Wall Mount Touch IOT Control Panel 4'' 480x480 For Smart Home

Place of Origin SHENZHEN
Brand Name OEM
Certification CCC/CE/CUSTOM
Model Number ICP -4
Minimum Order Quantity 200
Price Contact Us Now,For a Detailed Quotation
Packaging Details Custom Your Idea or neutral Package
Delivery Time 25-65 Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 Sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Screen Size 4" IPS Touch Panel 480*480 CPU PX30 Quad-core Cortex-A35
Touch Panel Cpactive Touch Panel RAM+ROM 1GB+8GB / 2GB+16GB
Interface RJ45+Type C+RS485+Reset +Speaker+Speaker Power Suply POE ,IEEE802.3af / DC 12V/24V / AC 110~240V , 50HZ
Install In Wall & Embedded Customize Function Zigbee / Temperature And Humidity Sensor / Light Sensor
High Light

Touch IOT Control Panel


IOT Control Panel 4''


480x480 wall mount touch panel

Leave a Message
Product Description

Smart Home Wall Mount Touch IOT Control Panel 4'' In Wall Monitor Display In Wall Tablet

4 inch Android 8.1 smart home IOT control panel


Features :


(1) 4" mini touch screen control panel


(2) Quad core Embedded mini touch panel


(3) Running Android 8.1 OS


(4) 480*480 Resolution


(5) Wall mounted , RJ45 port build in


(6) Power supply support AC 110V ~240V , DC 12V and 48V POE



System Dimension 84.5*84.5*36.2mm
Display size 4 inch
CPU PX30 Quad-core Cortex-A35
System Android 8.1
Resolution 480*480 IPS
Touch Panel Cpactive touch panel
RAM 1G(2G option)
ROM 8G(16G option)
Network WIFI 802.11b/g/n
Blue--tooth BT 4.0
Ethernet 10M/100M
Interface RJ45 Ethernet interface input (RJ-45 cable)
Type C Type C *1
RS485 RS485*1
Reset Reset *1
Speaker Speaker *1
Microphone Microphone *2
Power suply POE ,IEEE802.3af
DC 12V /24V
AC 110~240V , 50HZ
Customize Function Light sensor Light sensor (Option)
Temperature and humidity sensor Temperature and humidity sensor (option)
Zigbee Tuya zigbee (option)
Media plays Video MOV / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB
Audio MP3 / WMA / WAV / AAC / FLAC / OGG
Entertainment Video / Movie / Music / FM online
Other Install In wall & Embedded
Color White color
Working temperature .-10°~60°
Language Multi-language optional
Picture Details

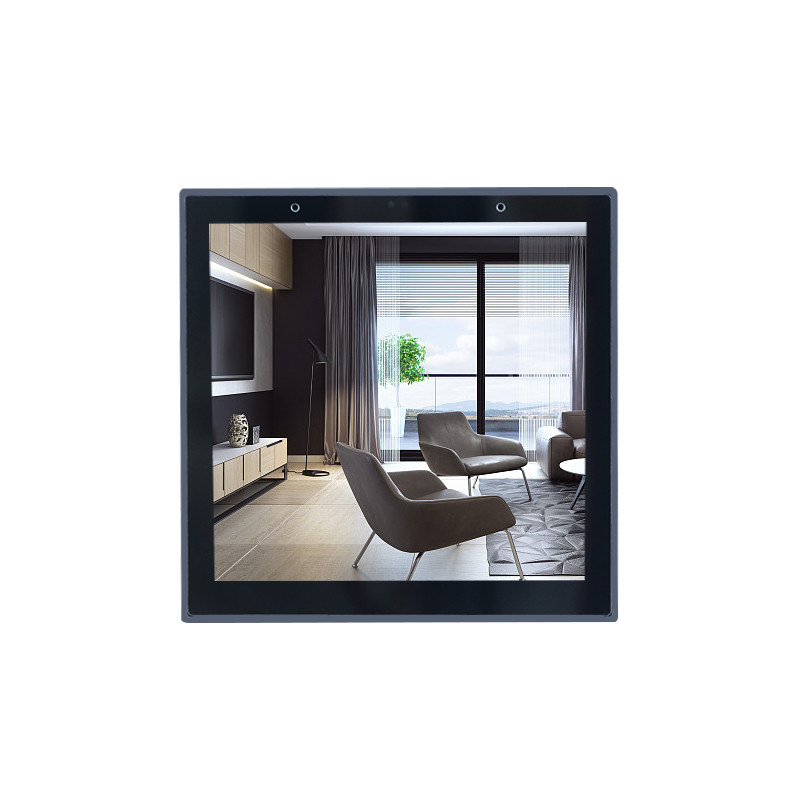

Wall Mount Touch IOT Control Panel 4'' 480x480 For Smart Home 0Wall Mount Touch IOT Control Panel 4'' 480x480 For Smart Home 1Wall Mount Touch IOT Control Panel 4'' 480x480 For Smart Home 2Wall Mount Touch IOT Control Panel 4'' 480x480 For Smart Home 3

4 inch touch panel pc
