| Place of Origin | SHENZHEN |
| Brand Name | PiPO or Your Brand |
| Certification | UL/CE/CCC/ISO |
| Model Number | M9 |
and external networks
high definition output

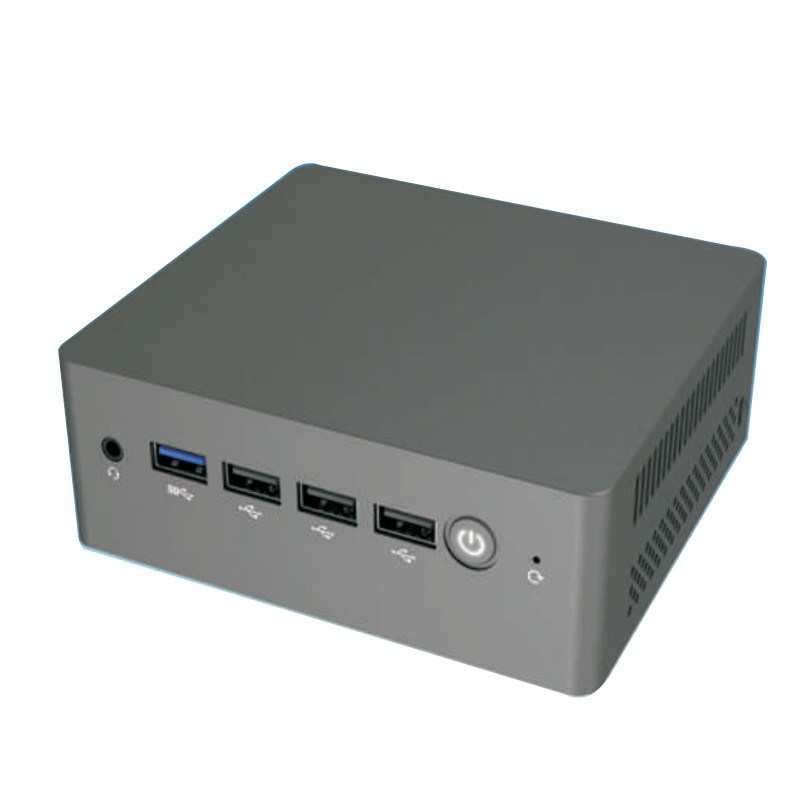

M9 is a Mini PC tailor-made for compact working environment, supports Win10,
Win11/Ubuntu, CentOS and other Linux operating systems, using Intel® Jasper Lake Series
processors, dual network cards and ultra-quiet design.
The products can be used in home entertainment, business office, high-end cloud terminal
and other industry application.
| Component | Specification |
|---|---|
| Processor | Intel® Alder Lake N95/N100/N300/N305 |
| Chipset | SOC |
| Cooling Method | Intelligent speed control ultra-quiet fan |
| Memory | LPDDR5 8G, supports 4800 MHz |
| Storage | UFS2.1, 0G/128G/256G, SATA 3.0, expandable 2.5-inch |
| Display | Intel® UHD Graphics Gen12 |
| Display Ports | 1 x DP, 4K@60Hz; 1 x HDMI, 4K@60Hz; 1 x Type-C, 4K@60Hz (optional) |
| Audio | Realtek ALC269Q |
| WiFi | 802.11 b/g/n/ac Dual-Band Wi-Fi, Bluetooth 4.2 (optional) |
| Expansion Slot | 1 x M.2 2280 SATA/NVME SSD (default SATA signal) |
| Network | 2 x RJ45, RTL8111H chip, dual gigabit network card |
| Front I/O Ports | 1 x 3.5mm Audio Jack, 1 x USB 3.0, 3 x USB 2.0, 1 x PWR_SW(PWR_LED), 1 x RET_SW |
| Rear I/O Ports | 1 x HDMI, 1 x DP, 1 x Type-C (optional), 2 x RJ45, 1 x DC-In 12V |
| Side I/O Ports | 1 x TF Card Reader |
| Material | Plastic |
| Color | Dark gray (customizable) |

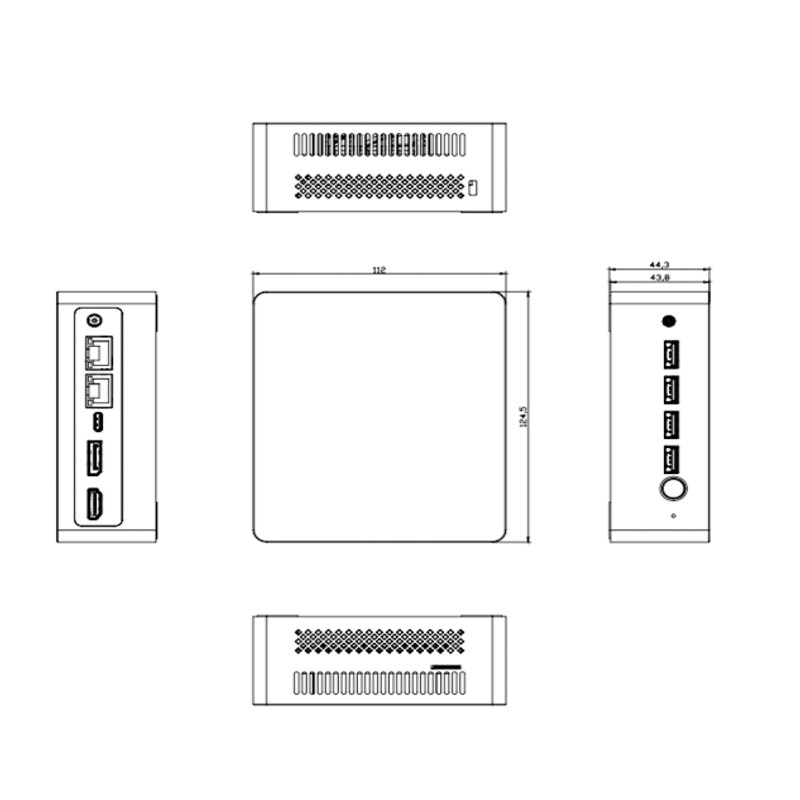

| Size | 124.5mm x 112mm x 43mm |
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Win 7, Win 8, Wi 10, Linux ubuntu , pfsense etc. Some model is support XP, such as 1037U,Core CPU is not support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
