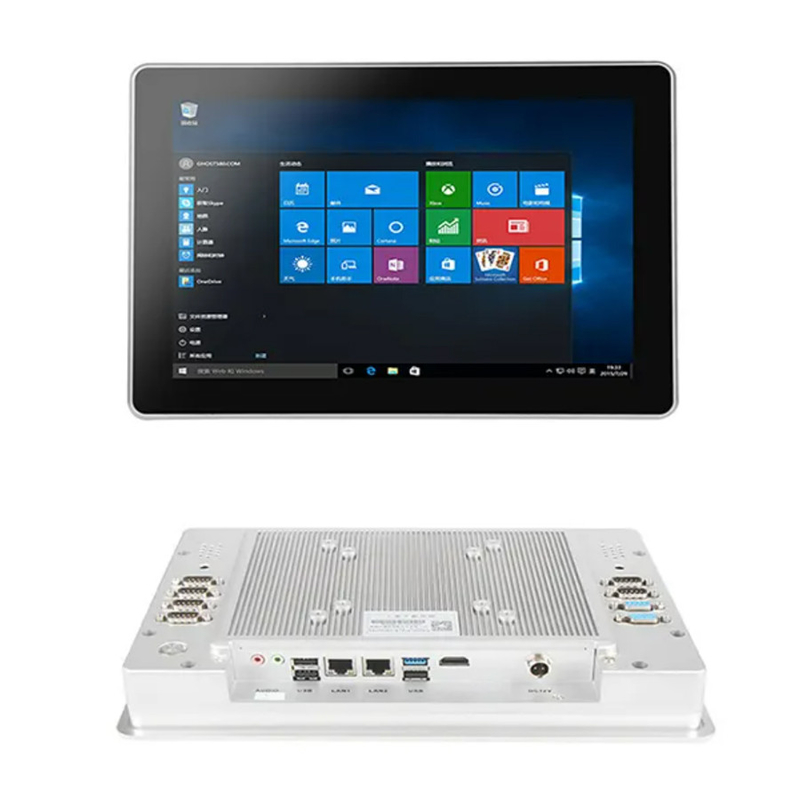

Industrial Panel PC
>
|
|
| Place of Origin | SHENZHEN |
| Brand Name | PiPO or Your Brand |
| Certification | UL/CE/CCC/ISO |
| Model Number | IPC-12-1 |
Design
Fast response through human body current induction, support multi-point touch, responsive, wear-resistant and long-life.
Front IP65 design to prevent splashing water and dust entering into the device, and make sure the device can be workable in the humid and dust environment.
Comply with EMC anti-electromagnetic interference standards, so it can be used in various industrial sites, such as outdoor signal interference and other environments.
Good compatibility; It can be compatible with windows 7/8/10 and Linux and Ubuntu OS, customized OS as well.
|
Display
|
|
|
Screen
|
12.1" TFT LCD
|
|
Resolution
|
1280*800
|
|
Brightness
|
350 cd/m2
|
|
Contrast
|
800:1
|
|
Touchscreen
|
Multi-Point Capacitive touch
|
|
Performance
|
|
|
Chipset
|
Intel Celeron J1900
|
|
RAM
|
Standard 2GB DDR3, up to 8 GB
|
|
Hardware Monitor
|
Monitors voltage, CPU, TEMP
|
|
Watch dog Timer
|
0-255 sec by software
|
|
Storage
|
SSD 64GB up to 512GB
|
|
Power Supply
|
|
|
Power Supply
|
9-24V DC (Standard 12V/5A adaptor, 9-36V DC optional)
|
|
OS
|
|
|
OS
|
Window 7 / Windows 10 / Linux
|
|
IO Port
|
|
|
USB
|
3*USB2.0 + 1*USB 3.0
|
|
Ethernet
|
2* GbE LAN RJ45 1000M
|
|
COM
|
6*RS232 (1~2*RS485/RS422 optional)
|
|
Audio
|
1*Line-out+1*Mic-in
|
|
Display
|
1*VGA,1*HDMI
|
|
Mini PCIe
|
1*MiniPCIe(WIFI/BT/3G/4G optional)
|
|
GPIO
|
1*4 in/4 out
|
|
Environmental
|
|
|
Anti-vibration
|
5-19Hz/1.0mm amplitude;19-200Hz/1.0g, acceleration
|
|
Anti-shock
|
10g acceleration, 11ms duration
|
|
IP65
|
Front panel IP65
|
|
Reliability
|
MTBF≥5000h; MTTR≤0.5h
|
|
Operating Temp.
|
0℃--50℃ with air flow
|
|
Storage Temp.
|
-30℃ --70℃
|
|
Operating Humidity
|
95% @40℃, non-condensing
|
|
Certificates
|
|
|
Certificates
|
CE, ROHS, FCC, WEEE
|
Q: What's the time of delivery?
A: It depends on your order quantity and our production schedule. Usually 3-5 working days for sample order, and 4 to 6 weeks for mass production after payment received.
Q: Are you manufacturer with your own factory or trading company?
A: We are manufacturer with our own factory located in Shenzhen. We produce industrial panel pc from 7” to 21”, embedded box pc, and rugged tablets. If you are available, welcome to visit us.
Q: How can I get some samples?
A: We are honored to offer you samples, please contact us directly.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from beginning to the end. We have good supplier-chain management. Our factory has gained CE, FCC, ROHS,IP67 certifications.
Q: Are you the original manufacturer of industrial pc and rugged tablet?
A: Yes,We are. Every product includes motherboard design, function modules and mould of casing are entirely made by PiPO itself. We also have some agents who sell our products in China and abroad.
