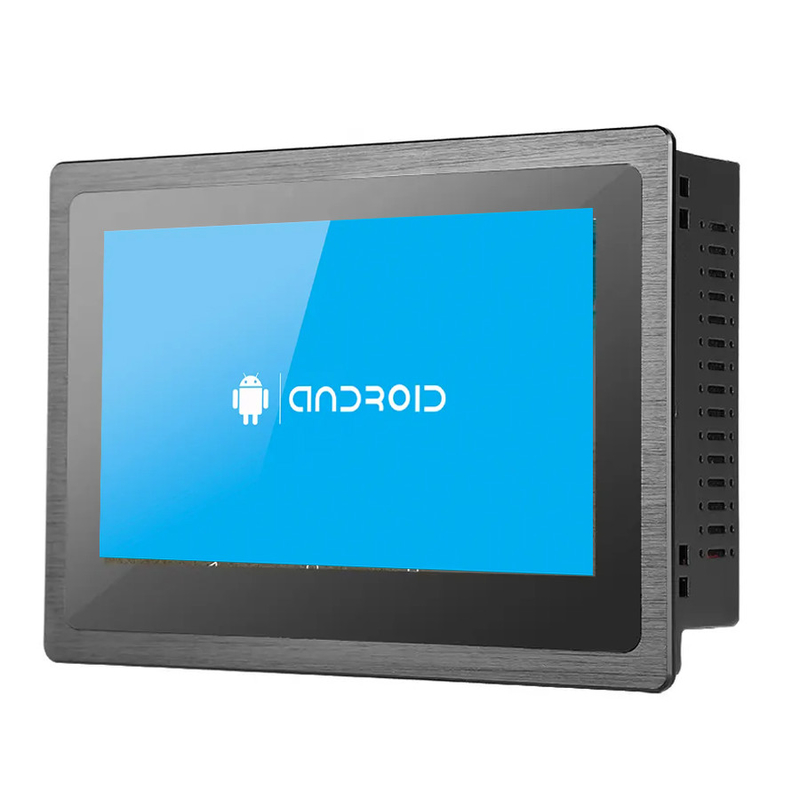

10.1" Industrial Android Panel PC With Touch Screen 1280x800 Resolution

Place of Origin SHENZHEN
Brand Name PiPO or Your Brand
Certification UL/CE/CCC/ISO
Model Number IPC-10-1
Minimum Order Quantity 200
Price Contact Us Now,For a Detailed Quotation
Packaging Details Custom Your Idea
Delivery Time 15-65 Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 Sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Screen Size 7 / 8 / 10.1 / 10.4 / 12.1" CPU RK3288 / RK3399 / RK3588
Memory 2GB Or 4GB Hard Drive Capacity 32GB Or 64GB
I/O Interface 1xHDMI/VGA/LAN, 4x USB/Audio Out/Power DC Resolution 1280*800
Working Voltage DC 12V Response Time <8ms
High Light

10.1" Industrial Android Panel PC


TouchScreen Industrial Android Panel PC


1280x800 industrial android pc

Leave a Message
Product Description

10.1" PC Panel 3mm Panel PC Android Industrial PC Bezel All In One Touch Screen Android OS 9.0/11

7 / 8 / 10.1 / 10.4 / 12.1" Android Industri Pc


All sizes are optional !


Capacitive Touch/Resistive Touch/Non-Touch optional!


Many installation methods are available!


Many interfaces, adapt to different devices!


Ultra durable PCB board!


Adapt to ultra-harsh environments!


More than 30,000 hours of service life!


Support any type of OEM/ODM service!


All products have at least 12 months warranty!

Actually, we have developed a touch screen device which has a broad range of industrial applications. such us
1) Smart home control
2) Smart touch panel for smart appliance
3) Smart OBD diagnostic device for cars, smart display panel for rear seat of the car,
tablet PC with TOF camera for driving monitoring
4) Smart health care devices for doctor and nurse in hospital, smart senior care tablet PC, smart health care for kids
5) Smart display with AI
6) Different size display open frame for smart scooter smart bike and smart treadmill
7) Smart big touch screen for ad players, POS devices for bank and mall.
8) Education tablet PC with keyboard and stylus pen for students
and other ODM projects too numerous to list.


Product Description
PC specification
RK3288 28nm Quad core ARM Cortex A17 1.8 GHz(RK3399,RK3568)
2GB DDR3 or
Nand Flash
EMMC Flash 16GB,/32GB / 64GB
Quad-Core Mali-T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL1.1 and Renderscript , Directx11, 2D GPU support 8Kx8K
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Video playback
Support wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4
Image Format
Network support
3G, Ethernet, WiFi/Blue-tooth 4.0, wireless peripheral expansion
Wireless Network
WIFI optional

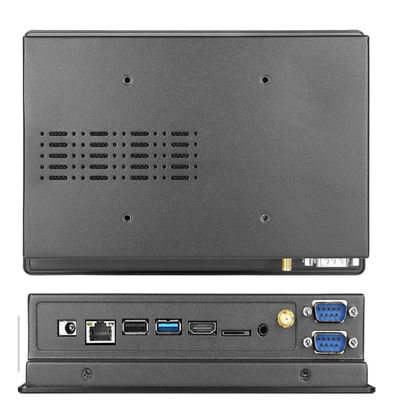

I/O Interface
USB ,Lan(RJ45),COM(RS232), SIM /TF slot ,HDMI/Audio OUT/POWER DC,WIFI,Blue-tooth
Opetation System
Support above Android 4.4-6.1 operation system
LCD panel
Panel size
10.1 Inch
Brightness (cd/m²)
300 cd/m2
Response time
Contrast ratio
View angle
80°/80°/60°/80° (R/L/U/D)
Touch panel
Touch Type
10 points projective Capacitive touch
Touch Interface
Response time
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
Operating Environment
Temperature range
operating: -10 to 60°C, storage :-20 to 70°C
Relative humidity
5%~95% @ 40° C, non-condensing
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Power adapter, Wifi antenna
Mounting (options)
1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide Floor standing to support the PC
1 year warranty for hardware
Picture Details


10.1" Industrial Android Panel PC With Touch Screen 1280x800 Resolution 010.1" Industrial Android Panel PC With Touch Screen 1280x800 Resolution 110.1" Industrial Android Panel PC With Touch Screen 1280x800 Resolution 210.1" Industrial Android Panel PC With Touch Screen 1280x800 Resolution 3


10.1" Industrial Android Panel PC With Touch Screen 1280x800 Resolution 4

Q: Can you support to design the tablet pc smartphone laptop outlook?
A:Yes, we can custom with your reference and using scenario description.

Q: Do you support the product software(SW) development?
A: Normally we do system and driver level development, Application-level development will be done by Client or 3rd party software(SW) developer assigned by clients.

Q: Which OS can you support development?
A:Yes, we can support tablet PC & smartphone custom OS based on Android OS ,Windows OS ,Linux OS, Ubuntu OS.

Q: Can you support to remove the battery from tablet PC?
A:Yes, sure, we can support tablet PC or smartphone removed battery, removed the camera, shipment without the device case, as well as we can support add the POE,USB Type C, DC IN, HDMI interface on the smart device.

Q: Can you support SKD service?
Q: Yes, we can support SKD (software kit development) service for customers.

Q: Do you have any experience with smart home projects?
A: Yes,we have rich experience with quite a lot smart home iOT cases. Tuya, Google assistant work with Alexa, Zigbee, Zwave, LoRa, etc.
