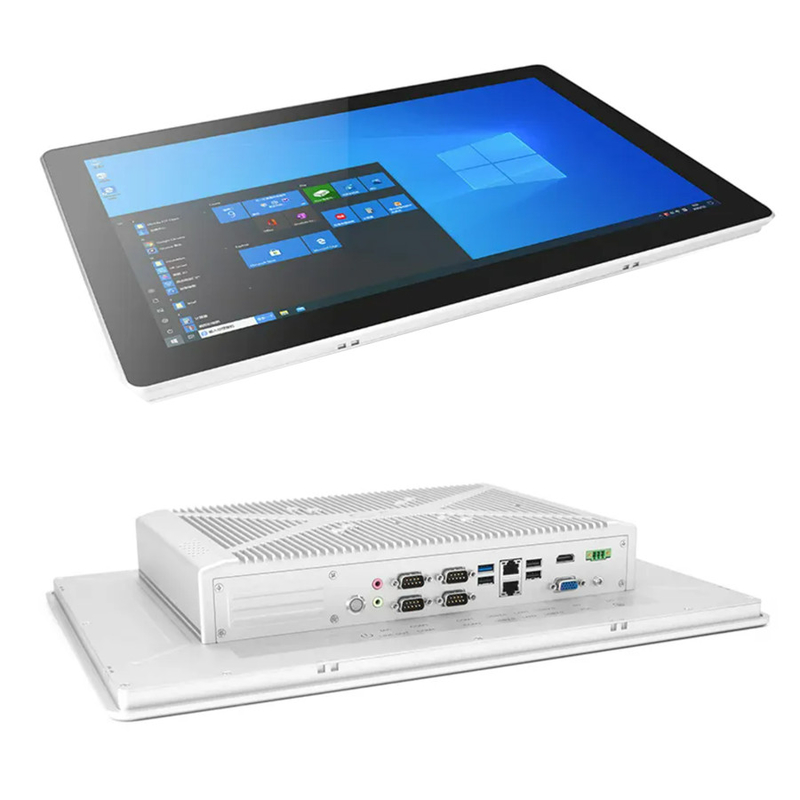

Industrial Panel PC
>
|
|
| Place of Origin | SHENZHEN |
| Brand Name | PiPO or Your Brand |
| Certification | UL/CE/CCC/ISO |
| Model Number | IPC-19-1 |
Design

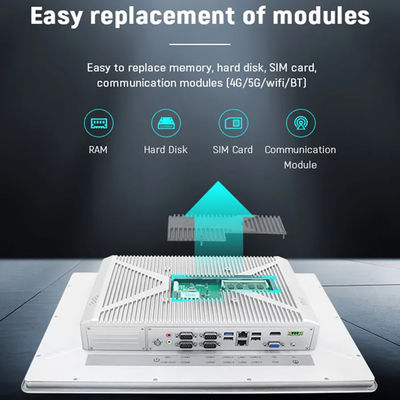

Easy to replace memory, hard disk, SIM card, communication modules (4G/5G/wifi/BT)
With the cable-free design of the motherboard, the internal structure is simple and the heat dissipation performance is better.
Support I/0 expansion (POE/CAN/serial port/USB), support PCIE slot expansion
Support auto/manual start-up, optional power-off data protection; 4GB DDR3L memory, 8GB max;2.5" large-capacity storage can be expanded additionally
|
Display
|
|
|
Screen
|
19″ LCD
|
|
Resolution
|
1440*900
|
|
Brightness
|
250 cd/m2
|
|
Touch Screen
|
Capacitive touch screen
|
|
Performance
|
|
|
Chipset
|
Intel® Bay Trail J1900 quad-core four-thread processor
|
|
Memory
|
4G DDR3L, Up to 8GB
|
|
Storage
|
M.2, 128GB, up to 512GB
|
|
Watchdog Timer
|
Support hardware reset function (256 levels, 0~255 seconds)
|
|
OS
|
Windows 7,Windows 10, Ubuntu
|
|

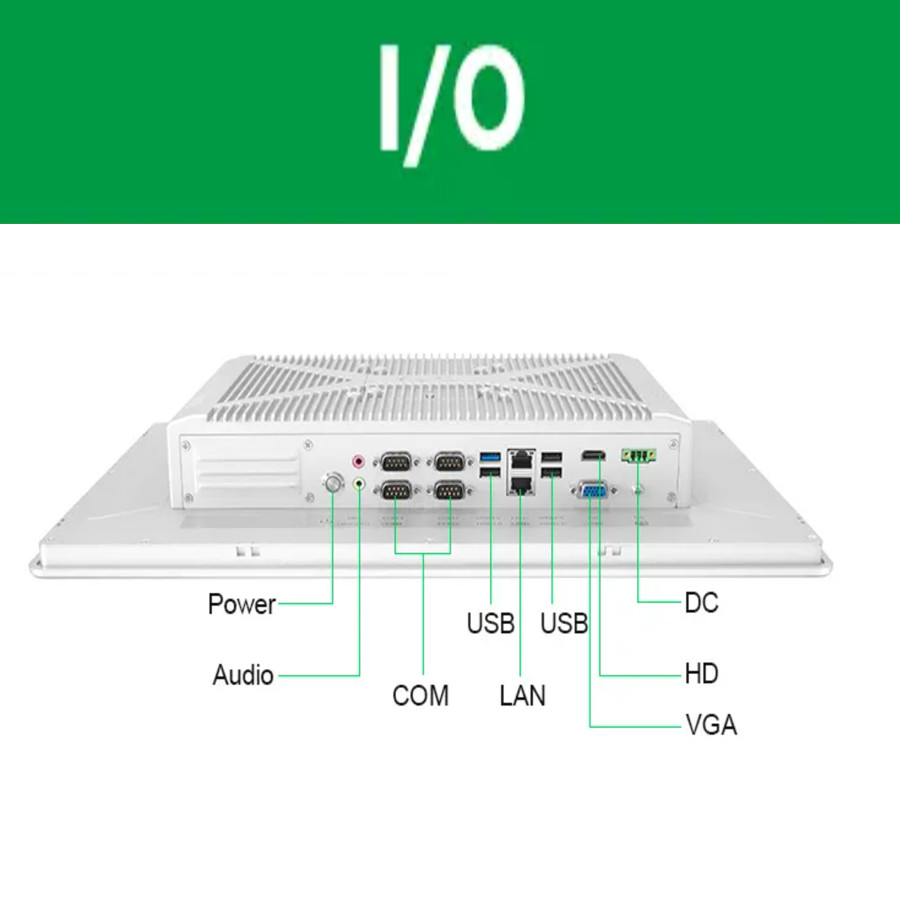

I/O
|
|
|
USB
|
1*USB3.0 +3*USB2.0
|
|
Mini PCIe
|
1*Mini PCIe(Wifi/BT/4G/5G optional)
|
|
Network Port
|
2* RJ45 Gigabit network interface
|
|
Serial port
|
4*RS232 (2*RS485 optional)
|
|
Audio
|
1*Line-out+1*Mic-in
|
|
Video
|
1*HD, 1*VGA
|
|
Expansion Slot
|
PCIE/LPC/I2C/2*RS232
|
|
GPIO
|
1*GPIO(4in/4out)
|
|
SIM Card
|
1* Built-in SIM card holder
|
|
DC Port
|
Phoenix terminal 3pin
|
|
Environmental
|
|
|
Operating Temp.
|
-10℃～50℃ Surface air flow
|
|
Storage Temp.
|
-20℃～70℃
|
|
Humidity
|
95% @40℃, non-condensing
|
|
IP Rating
|
Front panel IP65
|
|
Shock Protection
|
10G/11ms
|
|
Vibration Protection
|
5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration
|
|
Mechanical
|
|
|
Dimension
|
472*320*70mm
|
|
Material
|
Aluminum alloy
|
|
Weight
|
6kg
|
|
Color
|
Silver
|
|
Mounting
|
VESA mounting: 100*100mm Embedded installation: 459.49*306.4mm
|
Q: What’s Minimum Order Quantity?
A: 1 pcs sample. welcome to test our sample first and then place bulk order.
Q: How long is your Lead Time ?
A: Different quantity with different production time.regular product with 7-10 days, customized with 15-25 days around.
Q: What’s your Payment Terms?
A: TT or Paypal, Western Union.
We also welcome to place Trade Assurance order on Alibaba
Q: Do you give any discount?
A: we surely try our best to help you get the best price and good service at the same time.
Q: Do you support OEM / ODM?
A: Yes, pls let us know your detailed requirements then we can provide you the solution
